1943 Hand Crank Fabricate / Copy

I just plain enjoy fabricating parts... you can buy them for about $50.00

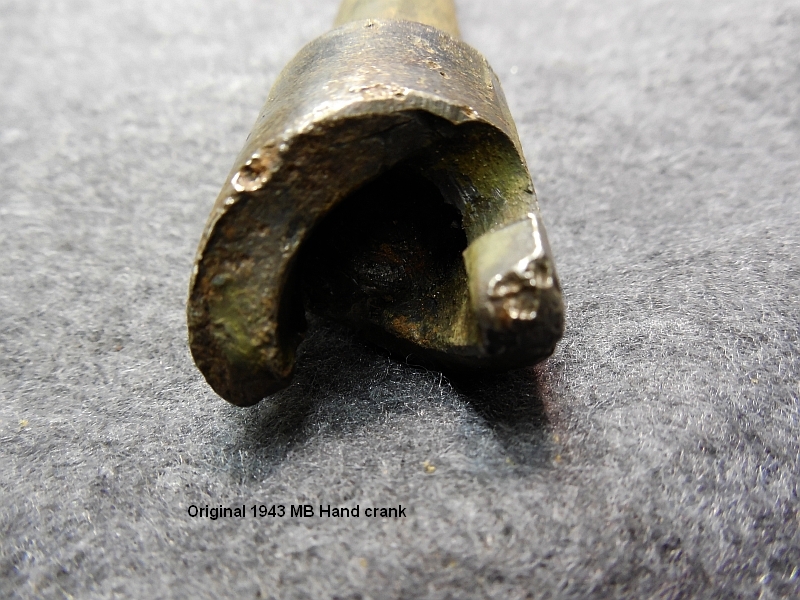

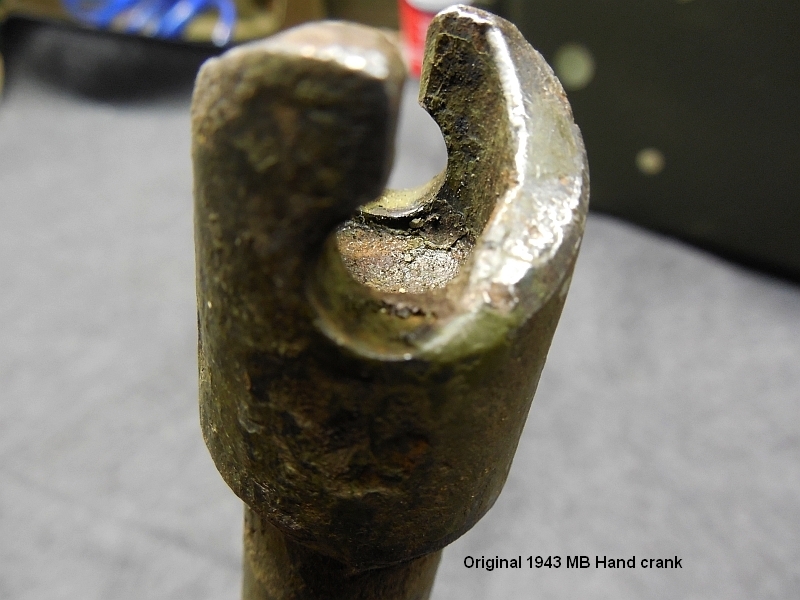

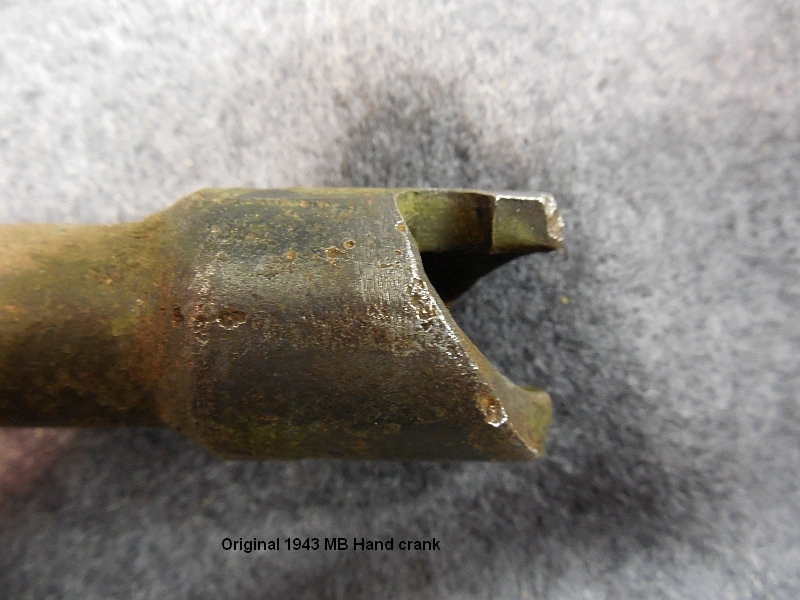

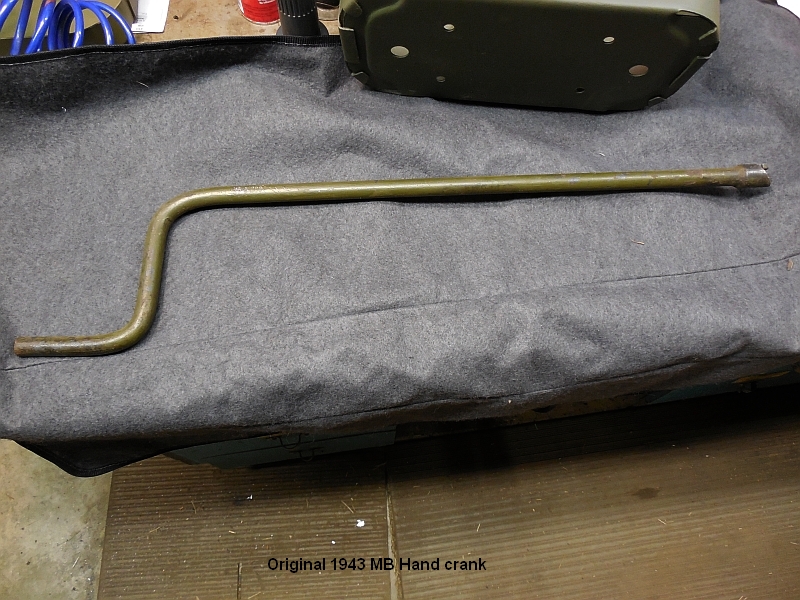

A buddy (John) loaned me his original crank to copy.

1943 MB Handcrank orig 1a.jpg (455455 bytes)    1943 MB Handcrank orig 7a.jpg (412649 bytes)    1943 MB Handcrank orig 3a.jpg (386095 bytes)    1943 MB Handcrank orig 4a.jpg (436683 bytes)    1943 MB Handcrank orig 6a.jpg (359922 bytes)

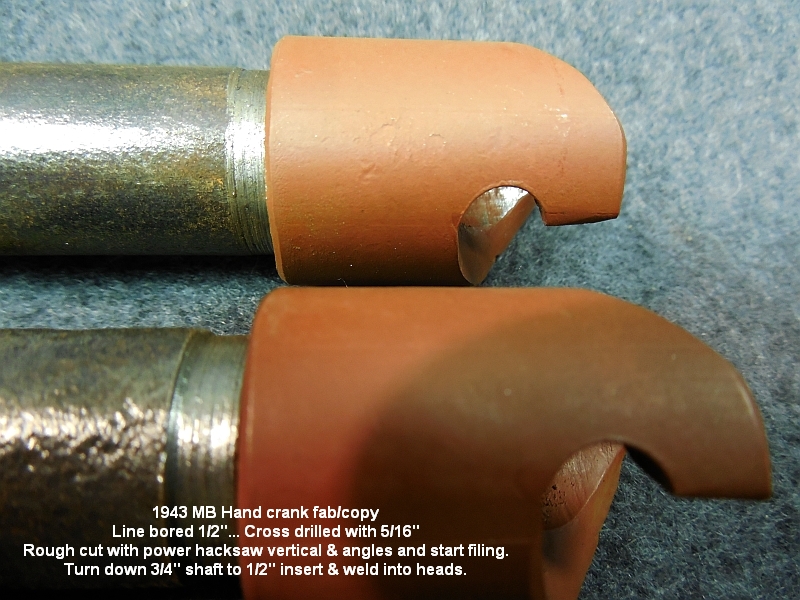

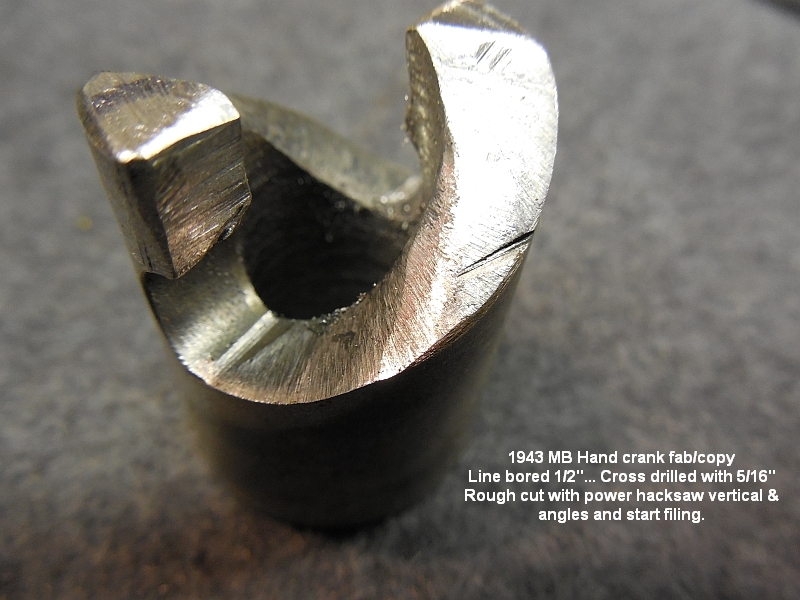

The head is made out of 1" round stock. It is line bored 1/2" and 5/16" cross drilled. After that is done make a saw cut down to the 5/16" hole.

I then used a power hacksaw to rough cut the angles. After that it was just hand work with files to make it look like the original.

The shafts were turned down to 1/2" to insert into the heads. Then will be welded.

1943 MB Handcrank copy 9a.jpg (455876 bytes)    1943 MB Handcrank copy 1a.jpg (386938 bytes)    1943 MB Handcrank copy 11a.jpg (507533 bytes)    1943 MB Handcrank copy 15a.jpg (437748 bytes)

Comparison Pictures of original & my copy

1943 MB Handcrank copy comparison 1a.jpg (445721 bytes)    1943 MB Handcrank copy comparison 3a.jpg (489903 bytes)    1943 MB Handcrank copy comparison 4a.jpg (479349 bytes)

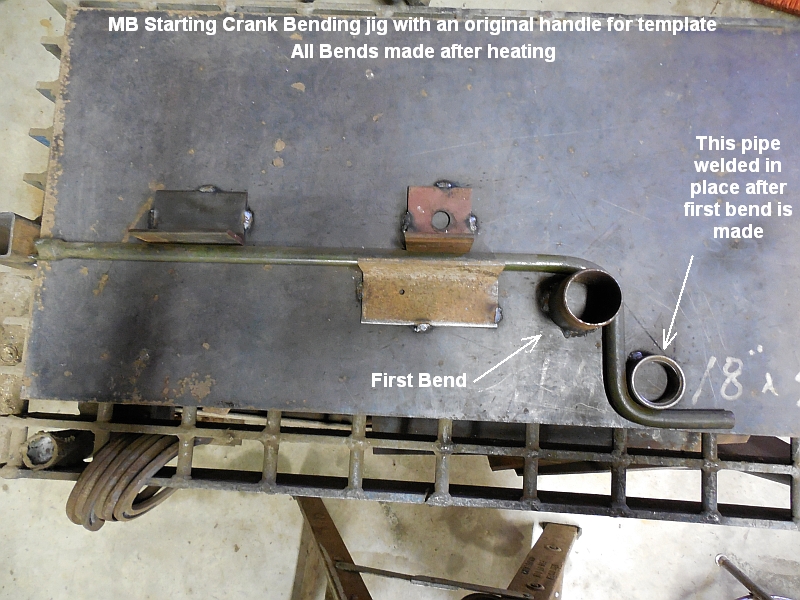

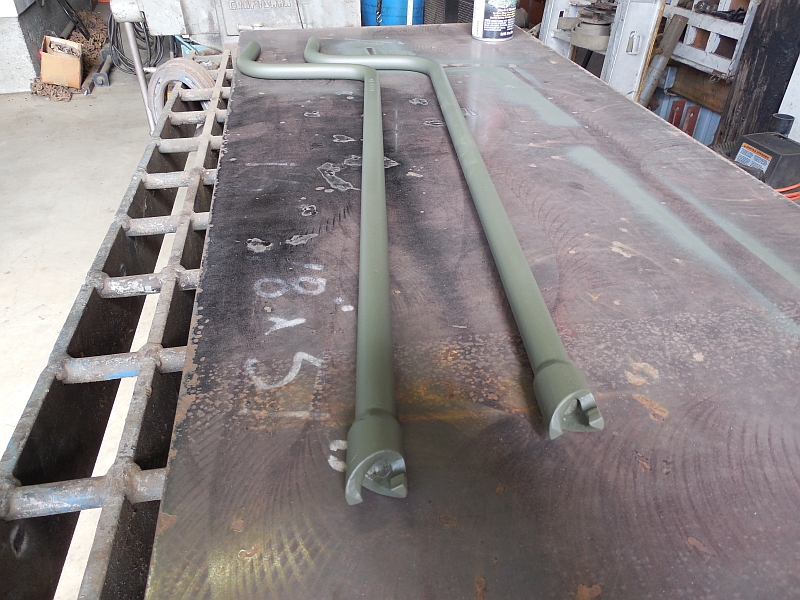

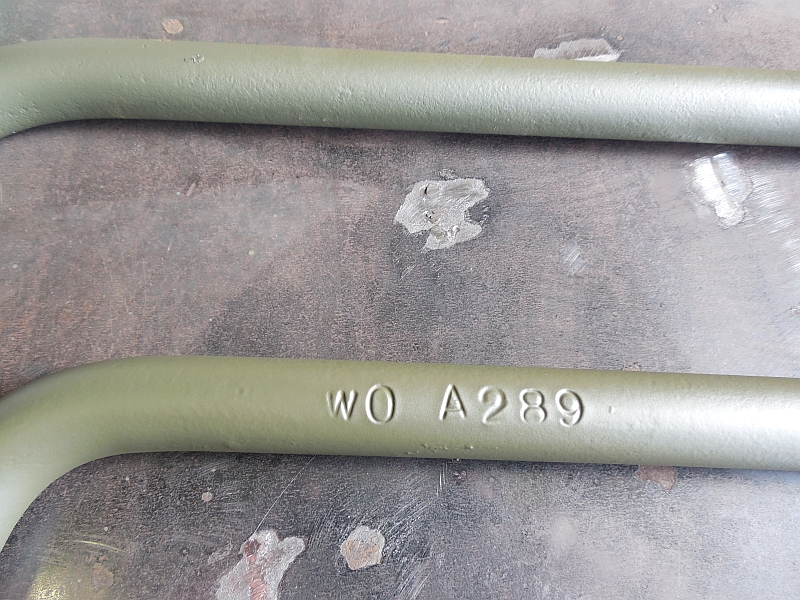

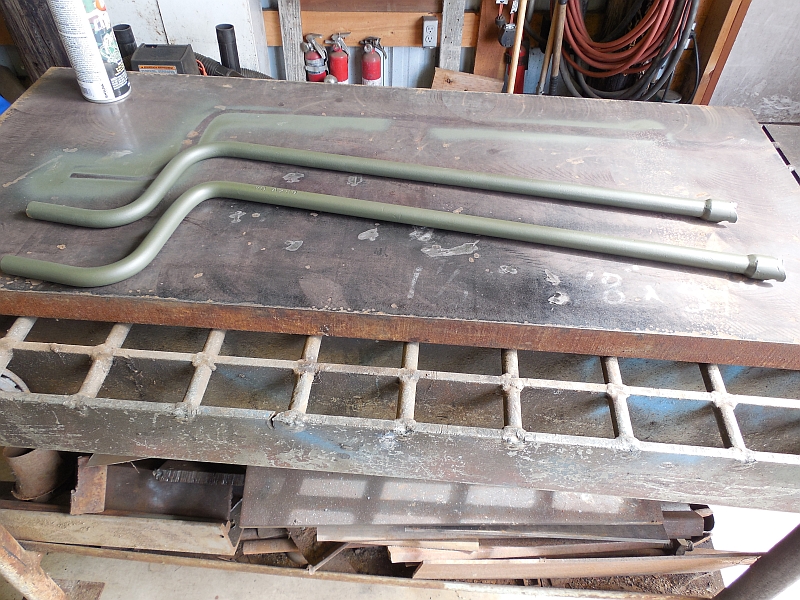

Bending Shafts and welding heads on. Both painted & One Stamped as for a MB

1943 MB Hand crank bending jig 1a.jpg (456328 bytes)    1943 MB Handcrank Copy finished 1a.jpg (504664 bytes)    1943 MB Handcrank Copy finished 5a.jpg (460387 bytes)    1943 MB Handcrank Copy finished 2a.jpg (460288 bytes)    1943 MB Handcrank Copy finished 3a.jpg (480773 bytes)

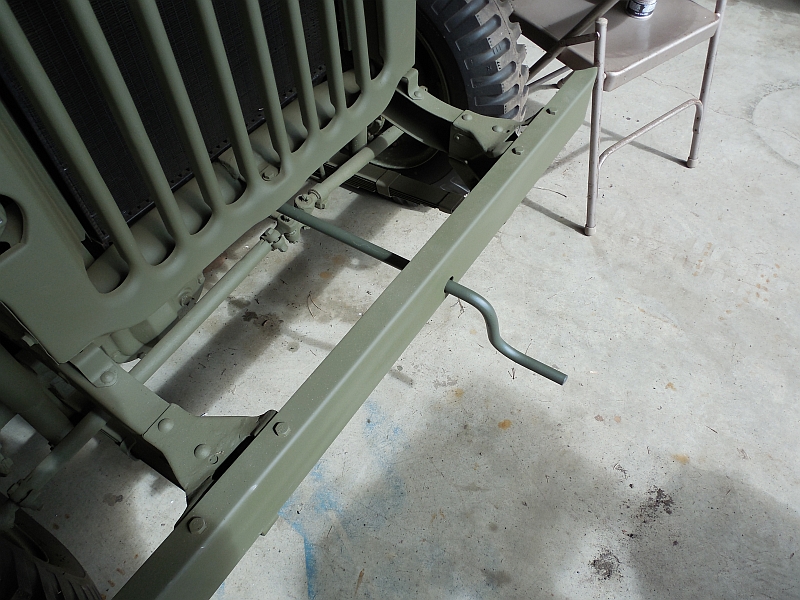

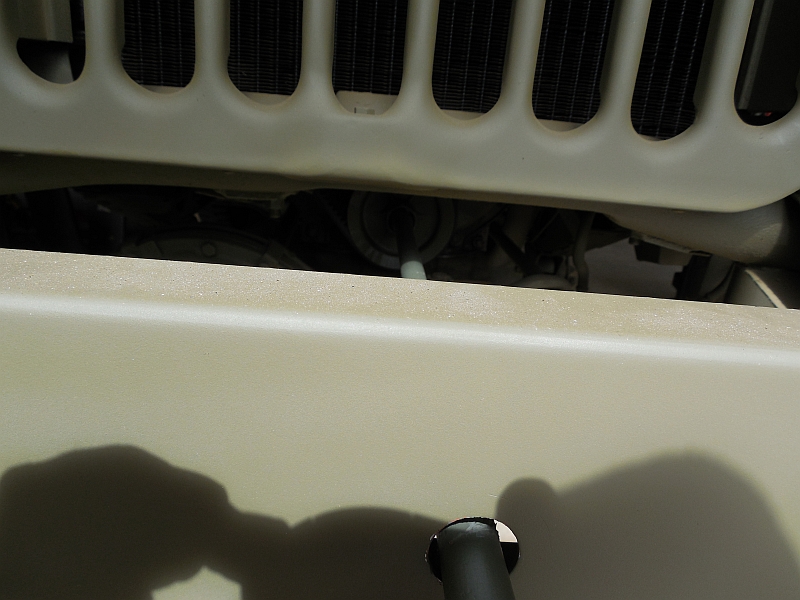

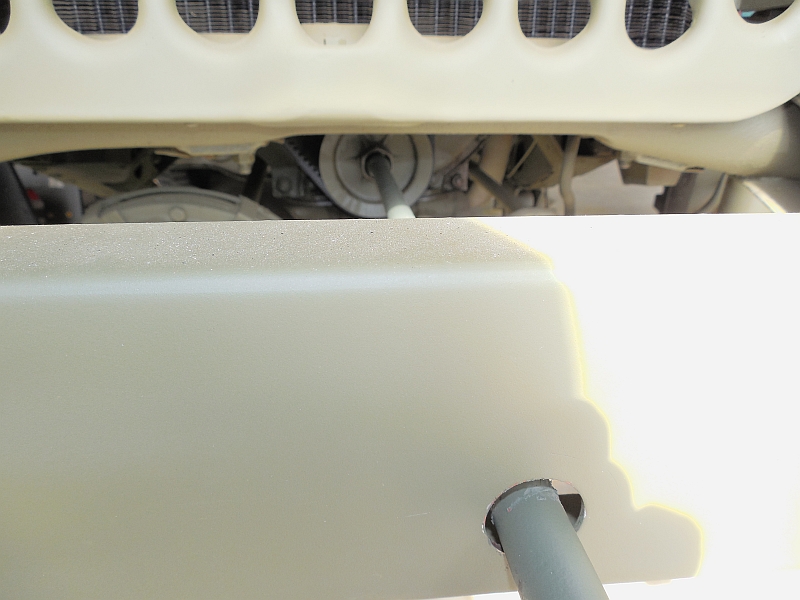

Crank in it's business position

1943 MB Handcrank Copy finished 6a.jpg (438173 bytes)    1943 MB Handcrank Copy finished 8a.jpg (357722 bytes)    1943 MB Handcrank Copy finished 10a.jpg (317089 bytes)

Crank, Hand, Engine Starting

Willys # A-289

Ford # GPW-17036

Fed # 8-C-8322

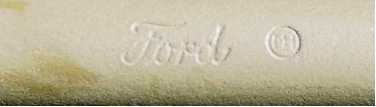

Pictures of original markings on both MB & GPW cranks

    MB

    GPW

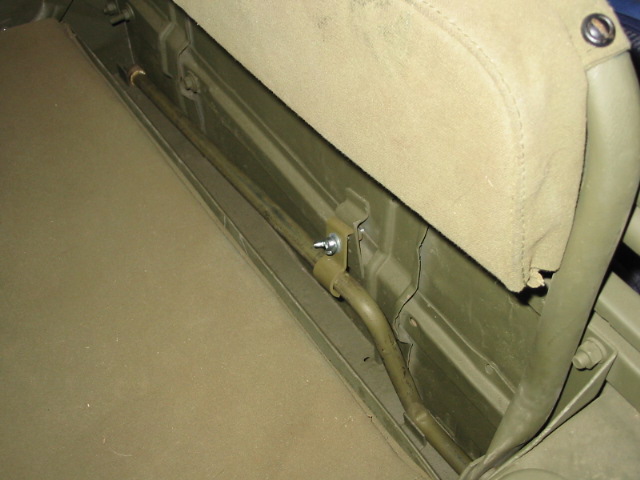

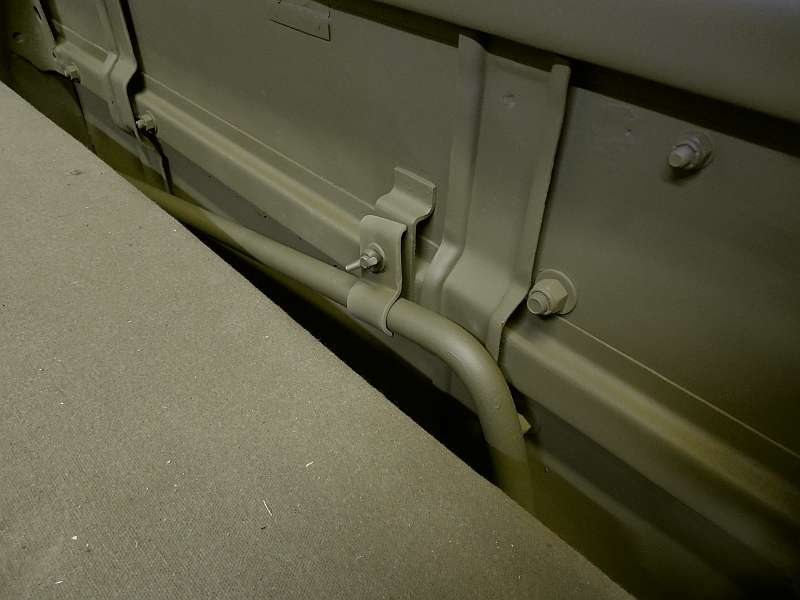

Storage of Hand Crank

 Hangs from clamp on inside of Rear Body Panel

Hand Crank Brackets - The Hand crank hung at an angle against the inside of the Rear Body Panel. It hangs vertically on a bracket with a threaded stud on it welded to the rear body panel. Over this threaded stud a curved clamp bracket (#A-2853) is placed wrapping around the round metal of the hand crank. The Clamp is secured by a wing nut at the top. Welded to the floor pan are 2 small "L" shaped brackets which also secure the lower ends of the crank.

crank storage.jpg (81592 bytes)

My Bracket for Storage

The stud for the clamp had been cut off. What I did was to drill & tap the old bolt that was cut off.

I did it to 5/16 coarse thread. I then made a stud the proper length, threaded it in to the drilled & tapped hole and put a 5/16 jam nut on the back side.

 I then made a clamp 1/8” flat stock. Here is mine clamped up…
