| Dearborn Subsoiler model # 10-98 before we started. Overall length is 40" with 23" below the 3 point bar.
|
Side view of shank & plow chute. This will plow cable or 3/4" Ploy Tube. The chute is 1 1/2" wide and about 2 1/2" deep. It is hinged so tractor turning is made easier. The rear of the chute is removable so you can take the cable/tube out at the end of plowing.
|
Making the back of the chute removable is a must. If you can't take the cable out of the chute at the end of plowing, you can't lift the plow without kinking the cable/poly tube you have just plowed in.
|
Pull these 2 pins to remove bar & cable or poly tube
|
This picture shows the front of the shank in an unfinished state. It will get streamlined for width for easy plowing.
|
| A chute hinge is important. Without one the whole plow acts like a rudder for the tractor . |
Terry and plow just after we finished welding it up.
|

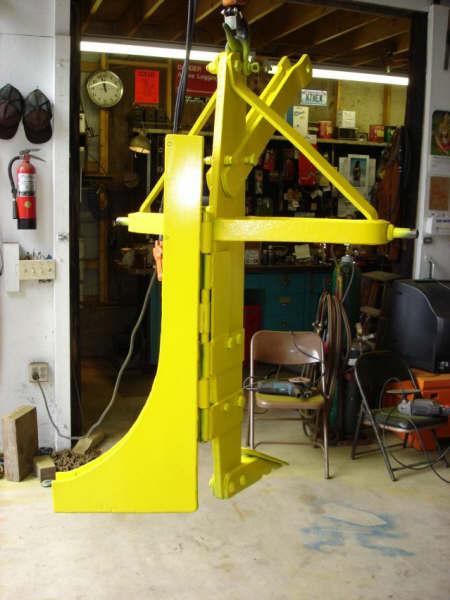

Painted Cable Plow ready for workout
|
Painted Cable Plow with 3/4" Poly Tube stuck into chute for show & tell.
|
Finished from front
|
| Finished from left front
|
Finished from rear
|
Finished from right rear
|
||
